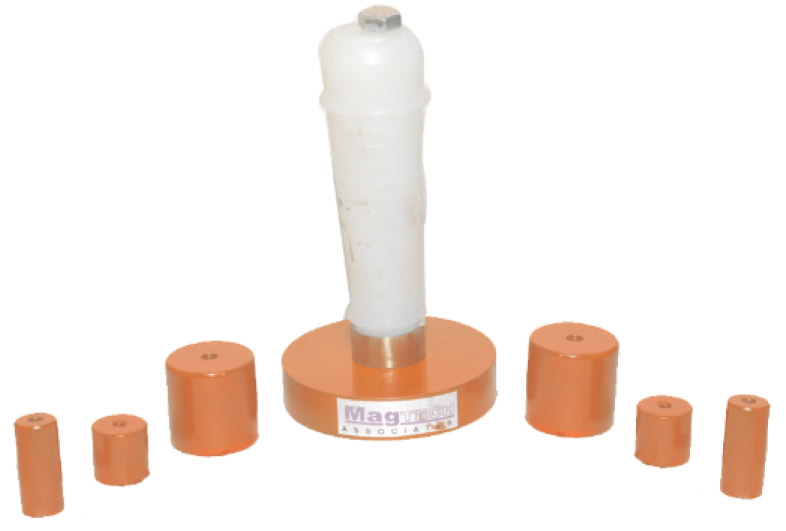

We are Manufacturer, Supplier, Exporter of Pot Magnets and our setup is situated in Pune, Maharashtra, India.
Purpose
Pot magnets have innumerable of application some of them are clamping,
holding, moving of small components through short distance, holding the

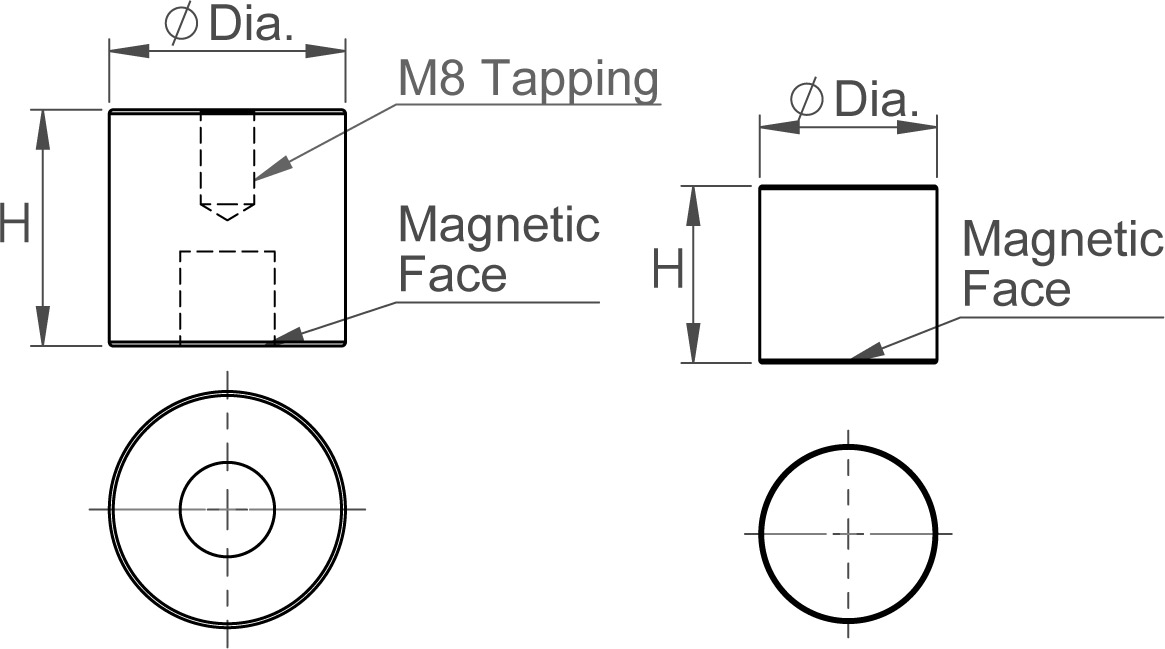

component for welding etc. The magnetic face is dully ground for close contact
with object. It also has tapping on back side for clamping purpose. These
tapping facility possible for those magnet which height is above 20mm. Size
and shape varies according to application.
Construction
It consist powerful Nd Fe B grade magnet.
Advantages
Area of application : All die shop, press shops, welding shops, atomization etc.
Available Sizes
| Model Code | Nominal Size | Model Code | Nominal Size |
| 016-01-01 | Dia. 6 x 10 | 016-01-17 | Dia. 20x 8 |
| 016-01-06 | Dia. 8 x 10 | 016-01-18 | Dia. 20 x 12 |
| 016-01-08 | Dia. 10 x 10 | 016-01-19 | Dia. 20 x 15 |
| 016-01-09 | Dia. 10 x 12 | 016-01-20 | Dia. 20 x 20 |
| 016-01-10 | Dia. 10 x 35 | 016-01-02 | Dia. 22 x 20 |
| 016-01-05 | Dia. 12 x 10 | 016-01-07 | Dia. 25 x 15 |
| 016-01-11 | Dia. 12 x 16 | 016-01-03 | Dia. 27 x 25 |
| 016-01-12 | Dia. 12 x 20 | 016-01-24 | Dia. 35x 30 |
| 016-01-13 | Dia. 12 x 35 | 016-01-21 | Dia. 40 x 35 |
| 016-01-14 | Dia. 15 x 24 | 016-01-22 | Dia. 30 x 30 |
| 016-01-15 | Dia. 18 x 16 | 016-01-04 | Dia. 35 x 35 |
| 016-01-16 | Dia. 18 x 20 | 016-01-23 | Dia. 40 x 35 |
