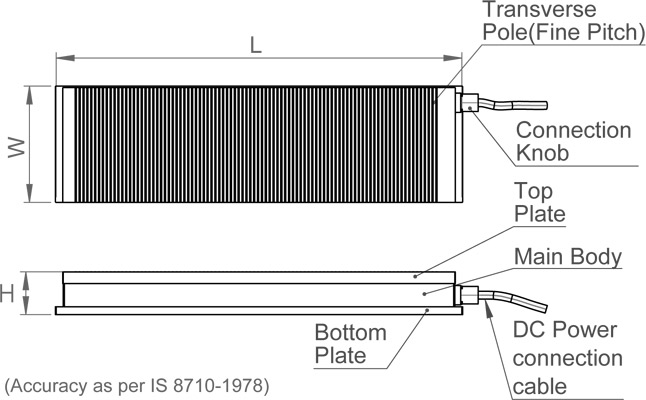

Heavy Duty Multi Coil Fine Pitch Electromagnetic Chucks Transverse

heavy-duty-multi-coil-fine-pitch-electromagnetic-chucks-transverse

Application

single-coil-electromagnetic-chucks

We are Manufacturer, Supplier, Exporter of Heavy Duty Multi Coil Fine Pitch Electromagnetic Chucks and our setup is situated in Pune, Maharashtra, India.

Application
Electromagnetic Chucks are designed for GRINDING operations. It generates strong magnetic force to hold work piece in rigid manner. These chucks are operated on continues D.C. Power Supply. There is no internal wear and deformation corresponding to movement of internal parts, which provides a better life than conventional Permanent Magnetic Chuck.

Characteristics of Electromagnetic Chuck

  • Construction : Fabricated body using High Permeability Steel.
  • Separation of pole : using brass strips
  • Conductor : Copper wire.
  • Class of Insulation : H class
  • Winding Base : FRP Former
  • Bounding : Epoxy potting
  • It operate on continuously D. C. supply
  • Operating Through : Operating Pendent.

Characteristics of Control Panel

  • Input : Powers supply required : 230 V A. C. supply
  • Output : Operating voltage : 110V D. C. Supply
  • Panel safety Precaution : Using Fuses on AC supply, DC supply and MCB.
  • Indication : Using Indication for main suppy, Magnet ON and demag cycle.

Inspection
Following tests are applied to inspect a chuck:-

  • Resistant to Earth Terminal Test
  • De-magnetizing Test
  • High Voltage Test
  • Leak Proof Test
  • Sleeping force Test
request-quote1 pdf

Model Code Size ( L x W x H ) Pole Gap Pole Pitch
002-03-01 450 x 150 x 100mm 1mm 2mm
002-03-02 500 x 200 x 100mm 1mm 2mm
002-03-03 600 x 200 x 100mm 1mm 2mm
002-03-04 600 x 250 x 100mm 1mm 2mm
002-03-05 750 x 250 x 100mm 1mm 2mm
002-03-06 900 x 250 x 100mm 1mm 2mm
002-03-07 600 x 300 x 100mm 1mm 2mm
002-03-08 750 x 300 x 100mm 1mm 2mm
002-03-09 900 x 300 x 110mm 1mm 2mm
002-03-10 1000 x 250 x 110mm 1mm 2mm
002-03-11 1000 x 300 x 110mm 1mm 2mm
002-03-12 1500 x 250 x 110mm 1mm 2mm
002-03-13 1500 x 300 x 110mm 1mm 2mm
002-03-14 1500 x 400 x 110mm 1mm 2mm

Accessories : Require D.C. Power supply unit for operating above chucks.
