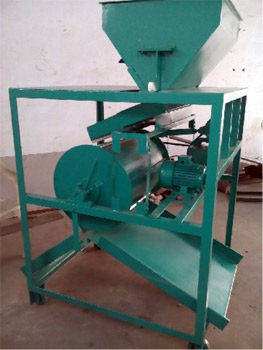

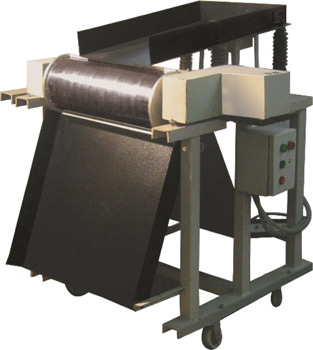

Motorized Magnetic Seperators For Scrap

motorized-magnetic-separator-for-scrap

motorized-magnetic-separator-for-scrap

We are Manufacturer, Supplier, Exporter of Motorized Magnetic Seperators For Scrap and our setup is situated in Pune, Maharashtra, India.

Purpose
Motorized magnetic Separator are used for separating ferrous particles from any kind of raw material Which is in Granular form / Powder form.

Location Particularly this separator is used in material recycling industries.

Construction

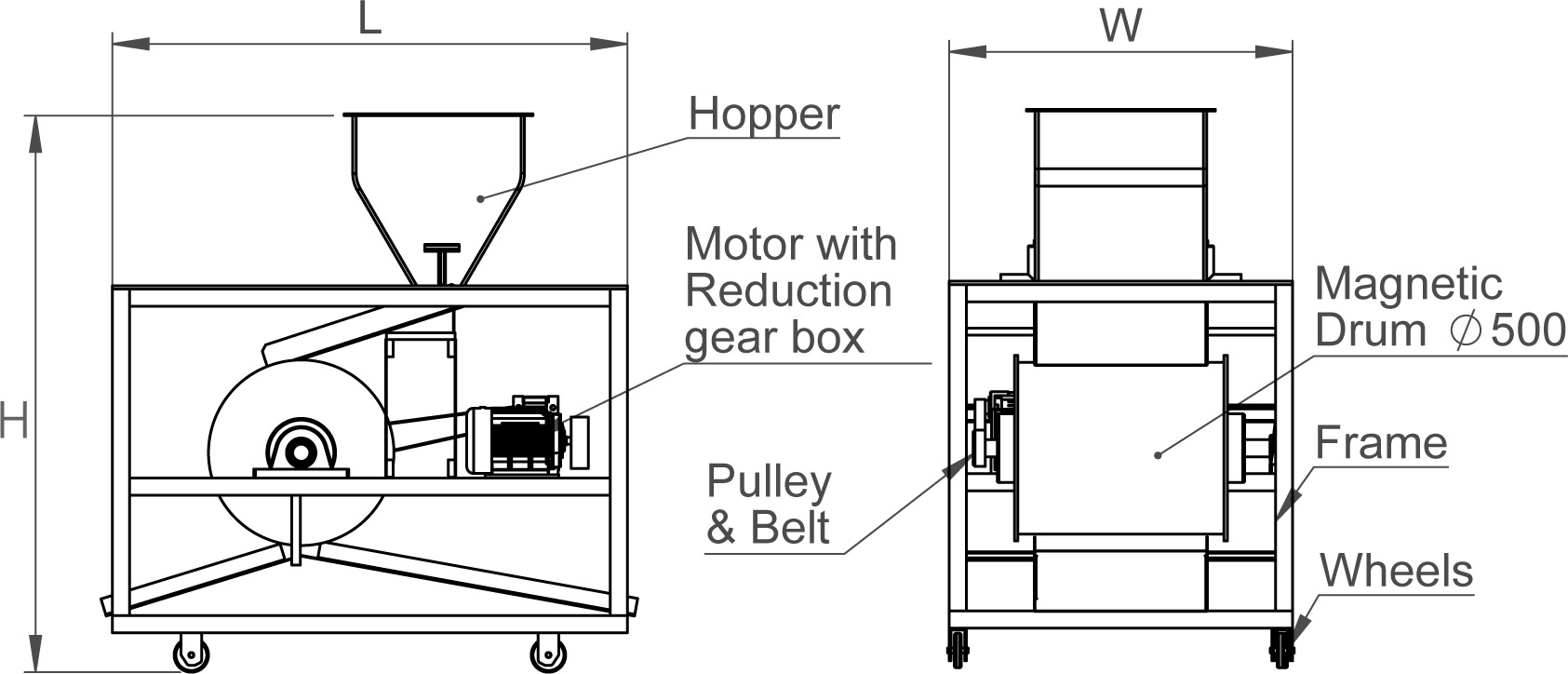

Overall body is made in MS fabrication It consist Magnetic Drum, Vibrator, Motor with reduction gear box, C.I. pulleys, V belt OR Chain and sprockets and wheels.
The Magnetic drum is consist Nd Fe B grade magnets OR Strontium ferrite magnets, outer shell of magnetic drum is made by SS304 / SS316 grade steel (Non magnetic steel).

Operating Method
Material feed in hopper OR directly on vibrating trey due to vibration material coming into contact with rotating magnetic drum and non ferrous particles collect in front size of machine as well as ferrous material collect by magnetic drum and it remove back side of machine.

Advantages

  • Fatigue reduces. (save energy)
  • Increasing productivity.
  • Increasing quality.
  • Absolutely environmentally friendly (No gases chemicals generated)
  • No maintenance is required.

Area of application : Plastic industries, Automobile industries, Recycling industries etc.

Available Sizes

Model Code Size ( L x W x H) Capacity per Minutes
018-09-01 1500 x 1000 x 1500mm 200 x 600mm
018-09-02 1500 x 1300 x 1500mm 200 x 1000mm

motorized-magnetic-separator-for-scrap

motorized-magnetic-separator-for-scrap

Purpose
Motorized magnetic Separator are used for separating ferrous particles from any kind of raw material Which is in Granular form/ Powder form.

Location Particularly this separator is used in material recycling industries.

Construction
Overall body is made in MS fabrication It consist Magnetic Drum, Vibrator, Motor with reduction gear box, C.I. pulleys, V belt OR Chain and sprockets and wheels.
The Magnetic drum is consist Nd Fe B grade magnets OR Strontium ferrite magnets, outer shell of magnetic drum is made by SS304 / SS316 grade steel (Non magnetic steel).

Operating Method
Material feed in hopper OR directly on vibrating trey due to vibration material coming into contact with rotating magnetic drum and non ferrous particles collect in front size of machine as well as ferrous material collect by magnetic drum and it remove back side of machine.

Advantages

  • Fatigue reduces. (save energy)
  • Increasing productivity.
  • Increasing quality.
  • Absolutely environmentally friendly (No gases chemicals generated)
  • No maintenance is required.

Area of application : Plastic industries, Automobile industries, Recycling industries etc.

Available Sizes

Model Code Magnetic Drum Size
018-10-01 Dia. 500 x 700 mm
