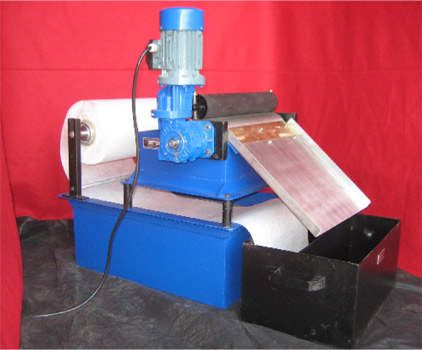

Motorized Magnetic & Non-Magnetic Seperators For Coolant Oil

motorized-magnetic-non-magnetic-separator-for-coolant-oil

motorized-magnetic-non-magnetic-separator-for-coolant-oil

We are Manufacturer, Supplier, Exporter of Motorized Magnetic & Non-Magnetic Seperators For Coolant Oil and our setup is situated in Pune, Maharashtra, India.

Purpose
These Separators are used for separating ferrous particles as well as non magnetic particles from coolant oil.

Location Particularly this separator is installed where the impure oil is arrives from machine for filtration purpose so that it can be filter and pure oil can be supply to machine.

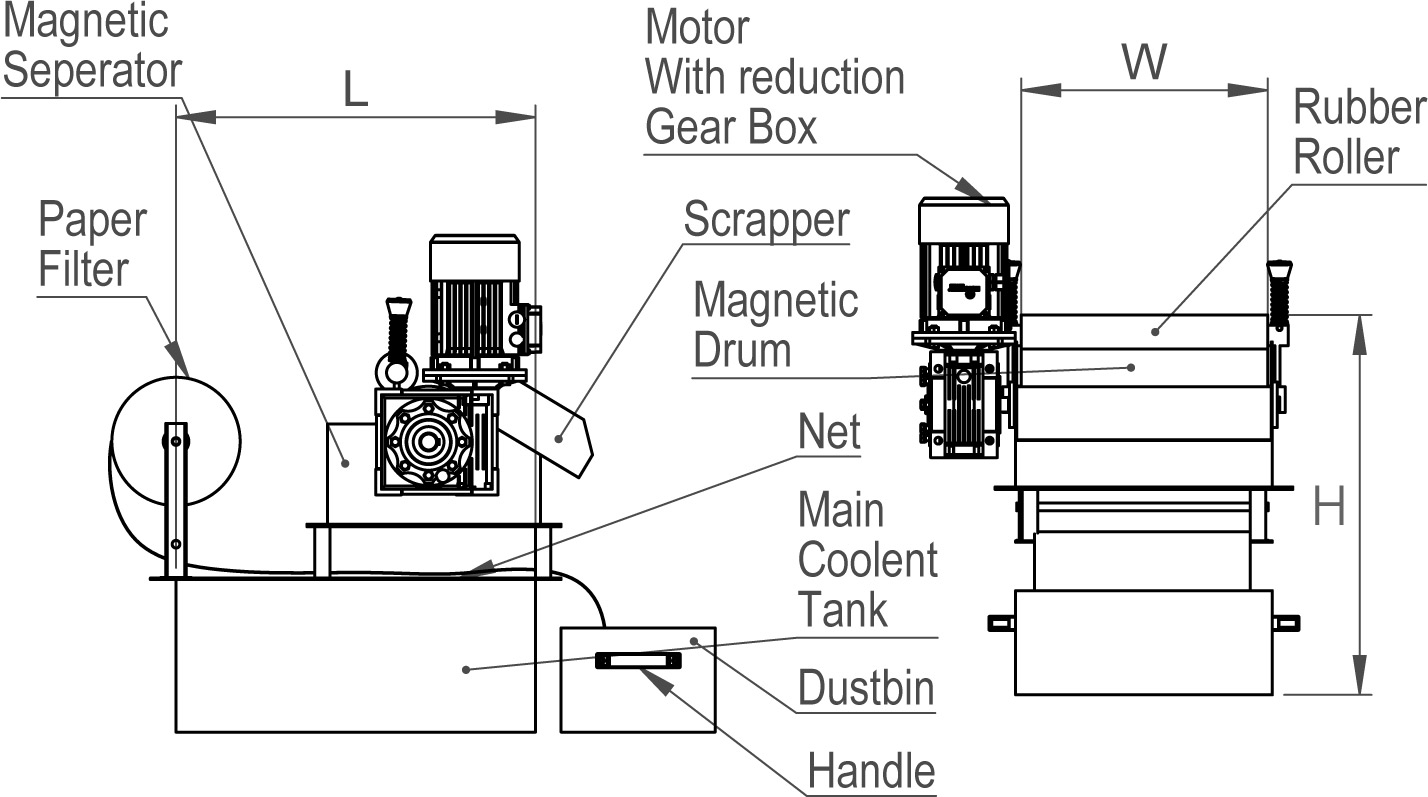

Construction
Overall body is made in MS fabrication. It consist Magnetic Drum, Motor with Reduction Gear Box, Scraper, Rubber Roller and Paper band filter paper(Consumable)
The Magnetic drum is consist Nd Fe B grade magnets OR Strontium ferrite magnets. Outer shell of magnetic drum is made by SS304 / SS316 grade steel (Non magnetic steel) or it can be manufacture without outer shell.

Operating Method
Impure oil collect in tanks and coming into the contact with rotating magnetic drum, magnetic drum collect ferrous particles with oil contains on the same time rubber roller squeezing oil contains from drum and ferrous particles remove by scraper so that pure oil collect in main tank fro reutilization.

Advantages

  • Fatigue reduces. (save energy)
  • Increasing productivity.
  • Increasing quality.
  • Absolutely environmentally friendly (No gases chemicals generated)
  • No maintenance is required.

Area of application : Automobile industries- Grinding Machine, Milling Machine, Hobbing machine, Gear Cutting Machine etc.

Available Sizes

Model Code Size ( L x W x H) Capacity per Minutes
018-08-01 L700 x W400 x H500mm 60 Liter Per Minute
