We are Manufacturer, Supplier, Exporter of Magnetic Single V Blocks and our setup is situated in Pune, Maharashtra, India.
Purpose

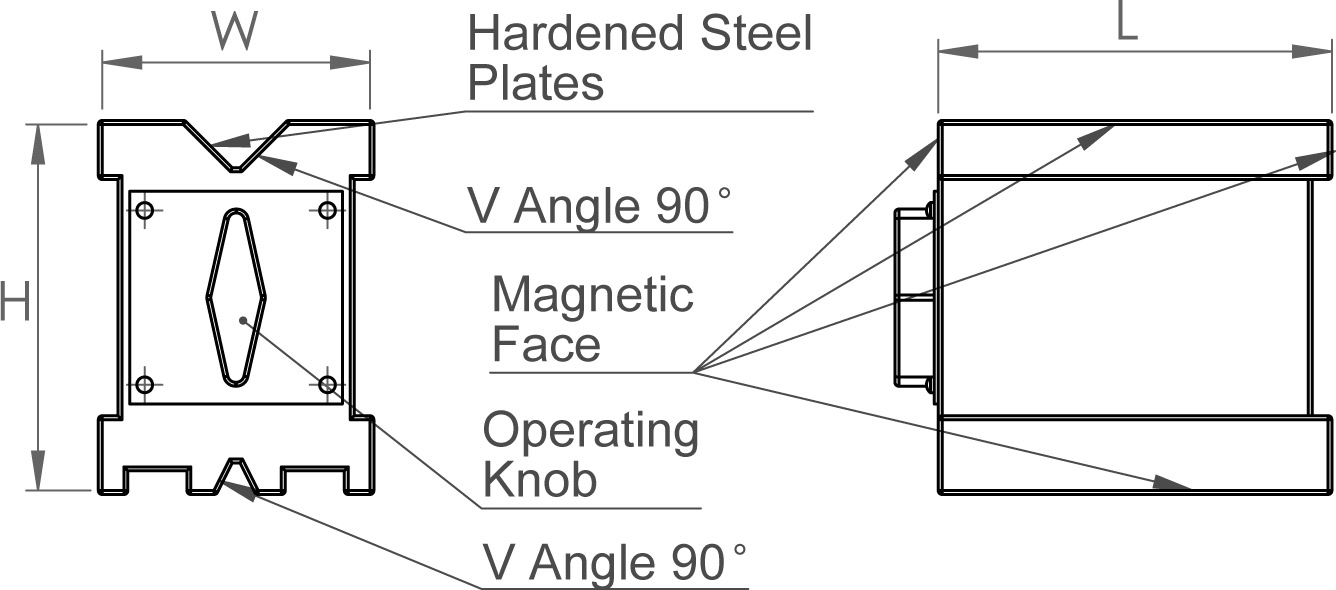

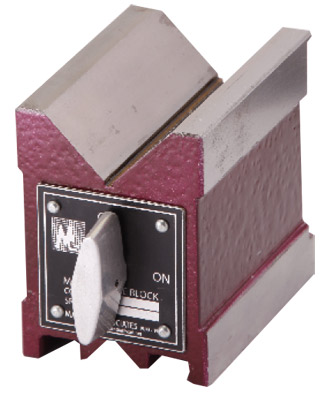

Magnetic ‘V’ block is basically a clamping device. Hence it used in Standard Room Tool Room and Shop Floor also. For Drilling, Grinding Light Milling operations. Its consist Three magnetic Surface Top, bottom with 90 degree angle and end surface opposite from switch. Magnetic surfaces are activated by mechanical ON-OFF switch. The main ‘V’ angle and bottom surface are provided with hardened steel plates, that ensures extra wear resistance.
The accuracy of flatness and parallelism and squareness is within 5 microns for 4”
& 6”, as well as 10 microns for 8” ‘V’ blocks.
Construction
It consist powerful Nd Fe B grade magnet, High permeability low carbon steel,
Aluminium etc.
Advantages
Area of application
All tool room / standard room, Machine shop etc.
Available Sizes
| Model Code | Size ( L x W x H ) | Clamping Range | Pulling Force |
| 004-01-01 | 40 x 40 x 50 mm (2") | 3 to 25mm | 25 Kgs |
| 004-01-02 | 75 x 56 x 75 mm (3") | 5 to 40mm | 75 Kgs |
| 004-01-03 | 100 x 70 x 95 mm (4") | 5 to 65mm | 125 Kgs |
| 004-01-04 | 150 x 75 x 100 mm (6") | 5 to 70mm | 150 Kgs |
| 004-01-05 | 200 x 125 x 150 mm (8") | 10 to 40mm | 175 Kgs |
