Heavy Duty Multi Coil Electromagnetic Chucks

heavy-duty-multi-coil-electromagnetic-chucks
heavy-duty-multi-coil-electromagnetic-chucks

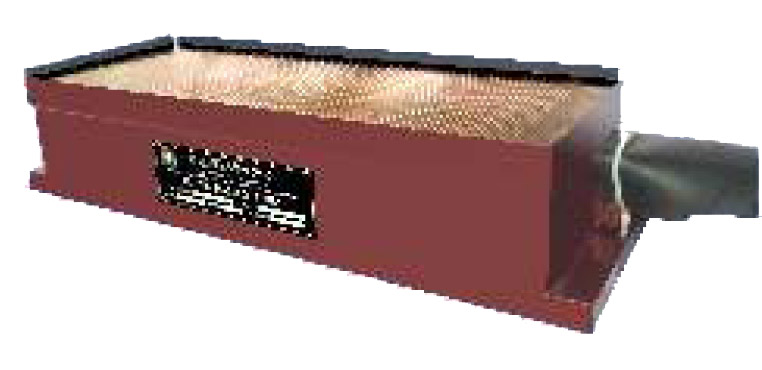

We are Manufacturer, Supplier, Exporter of Heavy Duty Multi Coil Electromagnetic Chucks and our setup is situated in Pune, Maharashtra, India.

Application

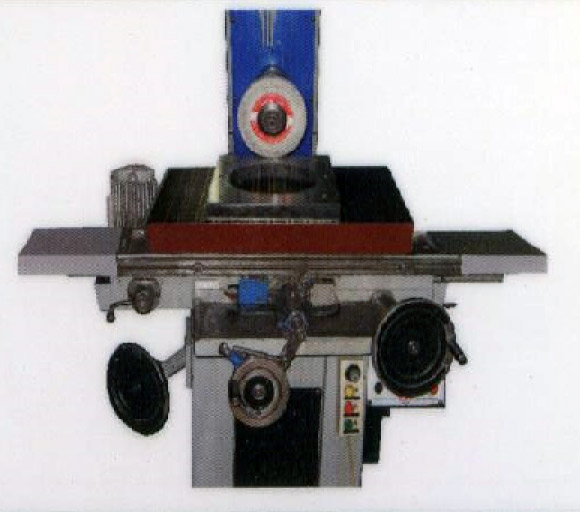

Electromagnetic Chucks are designed for GRINDING operations. It generates strong magnetic force to hold work piece in rigid manner. These chucks are operated on continues D.C. Power Supply. There is no internal wear and deformation corresponding to movement of internal parts, which provides a better life than conventional Permanent Magnetic Chuck.

Characteristics of Electromagnetic Chuck

  • Construction : Fabricated body using High Permeability Steel.
  • Separation of pole : using brass strips
  • Conductor : Copper wire.
  • Class of Insulation : H class
  • Winding Base : FRP Former
  • Bounding : Epoxy potting
  • It operate on continuously D. C. supply
  • Operating Through : Operating Pendent.

Characteristics of Control Panel

  • Input : Powers supply required : 230 V A. C. supply
  • Output : Operating voltage : 110V D. C. Supply
  • Panel safety Precaution : Using Fuses on AC supply, DC supply and MCB.
  • Indication : Using Indication for main suppy, Magnet ON and demag cycle.

Inspection
Following tests are applied to inspect a chuck:-

  • Resistant to Earth Terminal Test
  • De-magnetizing Test
  • High Voltage Test
  • Leak Proof Test
  • Sleeping force Test

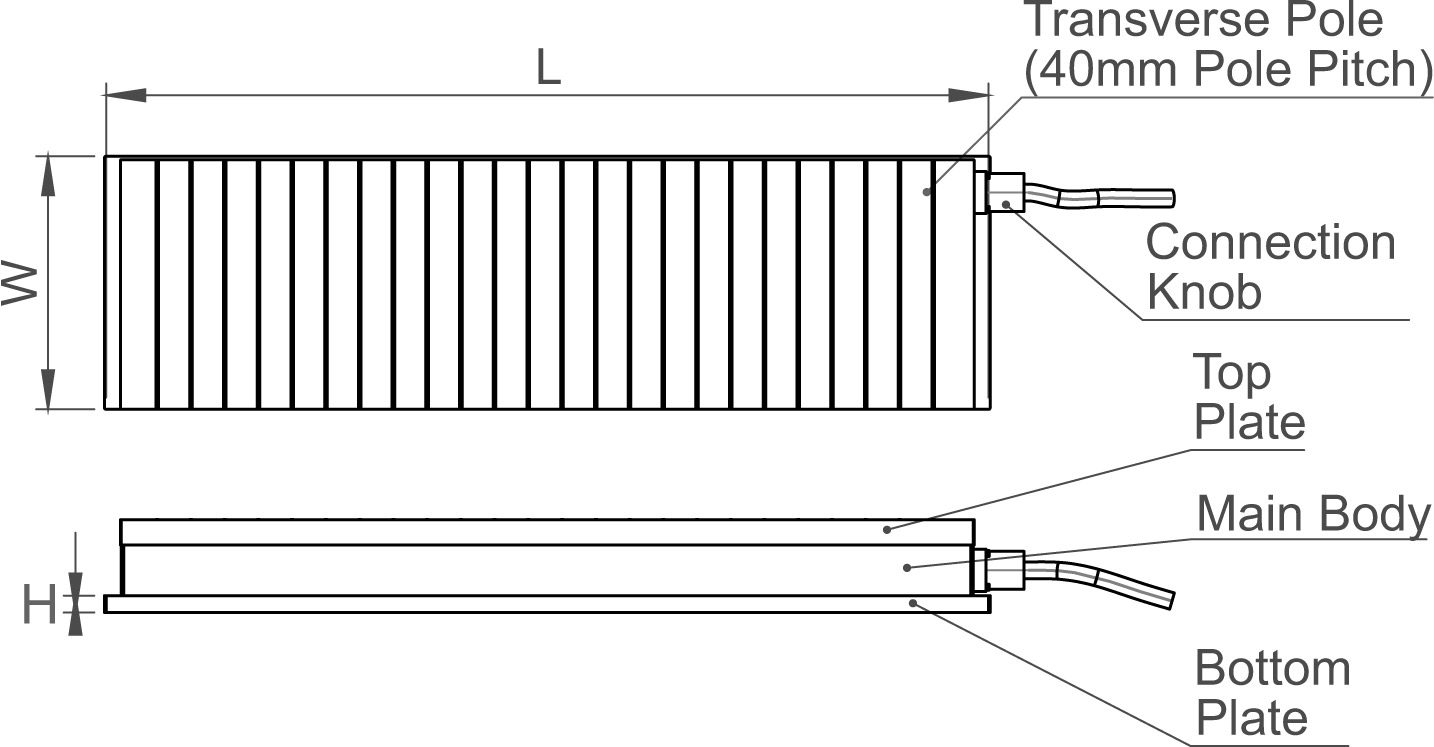

Model Code Size ( L x W x H ) Pole Gap Pole Pitch
002-02-01 450 x 150 x 100mm 15mm 40mm
002-02-02 500 x 200 x 100mm 15mm 40mm
002-01-03 600 x 200 x 100mm 15mm 40mm
002-02-04 600 x 250 x 100mm 15mm 40mm
002-02-05 750 x 250 x 100mm 15mm 40mm
002-02-06 900 x 250 x 100mm 15mm 40mm
002-02-07 600 x 300 x 100mm 15mm 40mm
002-02-08 750 x 300 x 100mm 15mm 40mm
002-02-09 900 x 300 x 110mm 15mm 40mm
002-02-10 1000 x 250 x 110mm 15mm 40mm
002-02-11 1000 x 300 x 110mm 15mm 40mm
002-02-12 1500 x 250 x 110mm 15mm 40mm
002-02-13 1500 x 300 x 110mm 15mm 40mm
002-02-14 1500 x 400 x 110mm 15mm 40mm
