We are Manufacturer, Supplier, Exporter of Magnetic Destackers and our setup is situated in Pune, Maharashtra, India.
Purpose
Magnetic Sheet Separator are used for separation of a single sheet from the stack, these sheets are separated one-by-one from top to bottom. It is suitable for “Manually operation as well as Robotic Sheet pick-up System”.
Construction
The body of De-stacker is fabricated. It consist SS304 / Mild Steel / Aluminium. It is available in Nd Fe B grade magnets and Strontium ferrite magnets. Outer surface is made by SS304 / SS316 grade steel ( Non magnetic steel ). Provide two vertical strips to for easily sleeping sheet from the magnetic surface.
Customize design
This separator can be design as per sheet size ( Length, Width and Thickness ) and stack height. It’s also suit for Robotic Sheet Conveying System so that single sheet can be lifted by Robot and it avoid feeding two sheets at a time in a Press Die.
It’s also suit for manually operation so that press operator can easily pickup one sheet at a time.
Advantages
- Avoid two sheet feeding AT-A-TIME in press die.
- Fatigue reduces of operator(save energy)
- Increasing productivity.
- Increasing quality.
- No Electricity is required.
- No dimensional changes.
- Absolutely environmentally friendly (No gases chemicals generated)
- No maintenance is required. Zero maintenance
Area of application : Press Shops

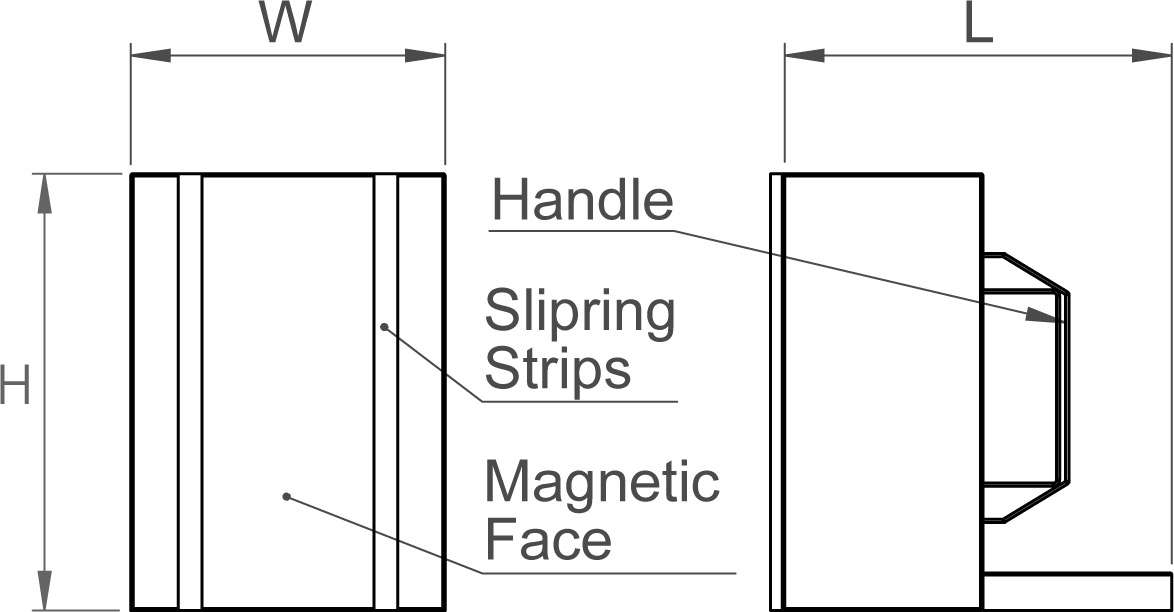

Available Sizes
| Model Code | Nominal Size |
| 019-01-01 | L 50 x W 60 x H 90mm |
| 019-01-02 | L 60 x W 100 x H 125mm |
| 019-01-03 | L 150 x W 185 x H 200mm |
| 019-01-04 | L 150 x W 185 x H 250mm |
| 019-01-05 | L 150 x W 200 x H 350mm |
